HyperDeck Dashboard is a browser-based control application for Blackmagic Design HyperDeck recorders. It centralizes multi-deck monitoring, transport control, recording operations, media management, clip playback, playlist creation, scheduling, I/O configuration, diagnostics, and protected maintenance tools in one operator-focused interface.
Cross-platform. Browser based. Self-hosted. Built for broadcast workflows.
Powerful features. Built for real-world production.

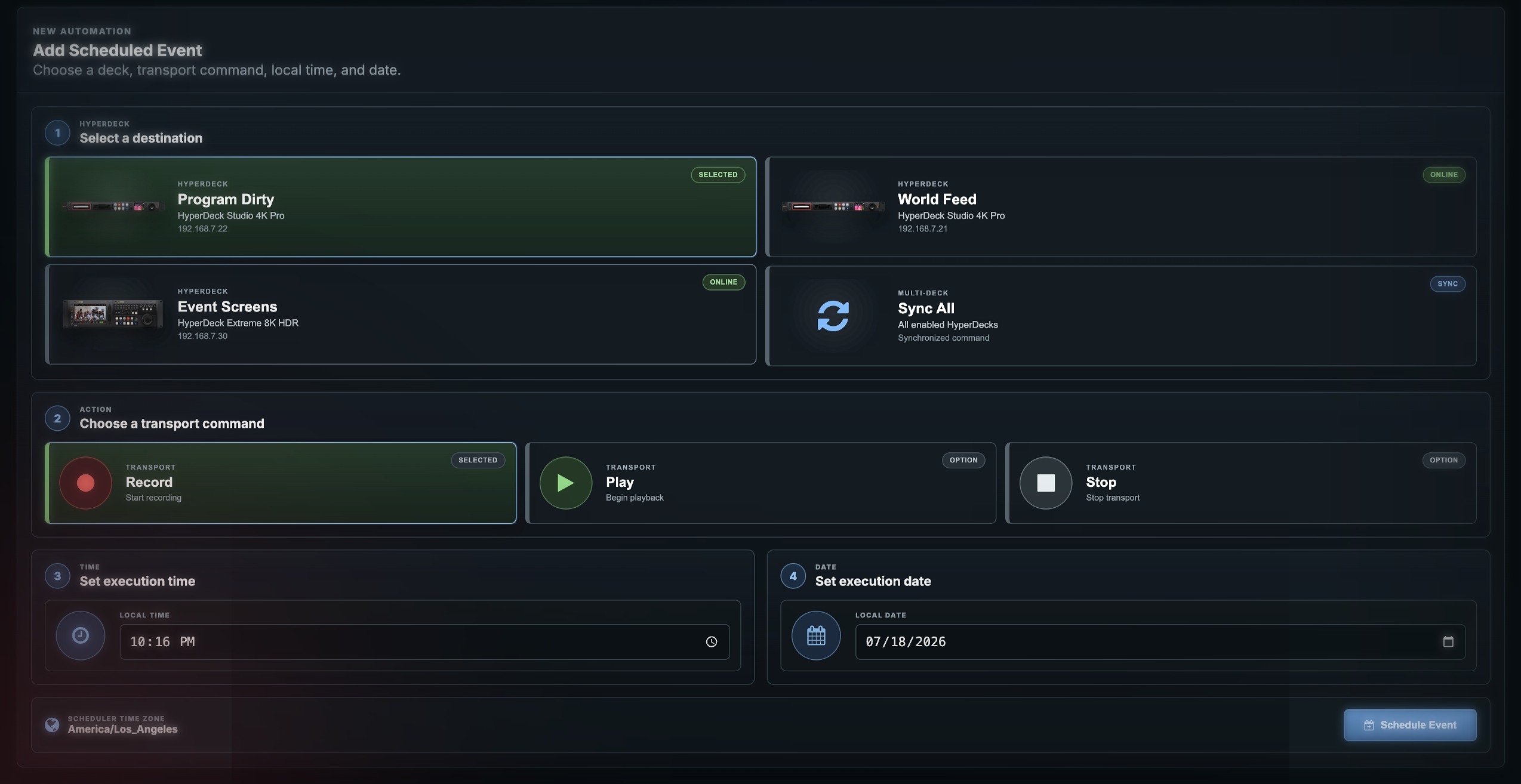

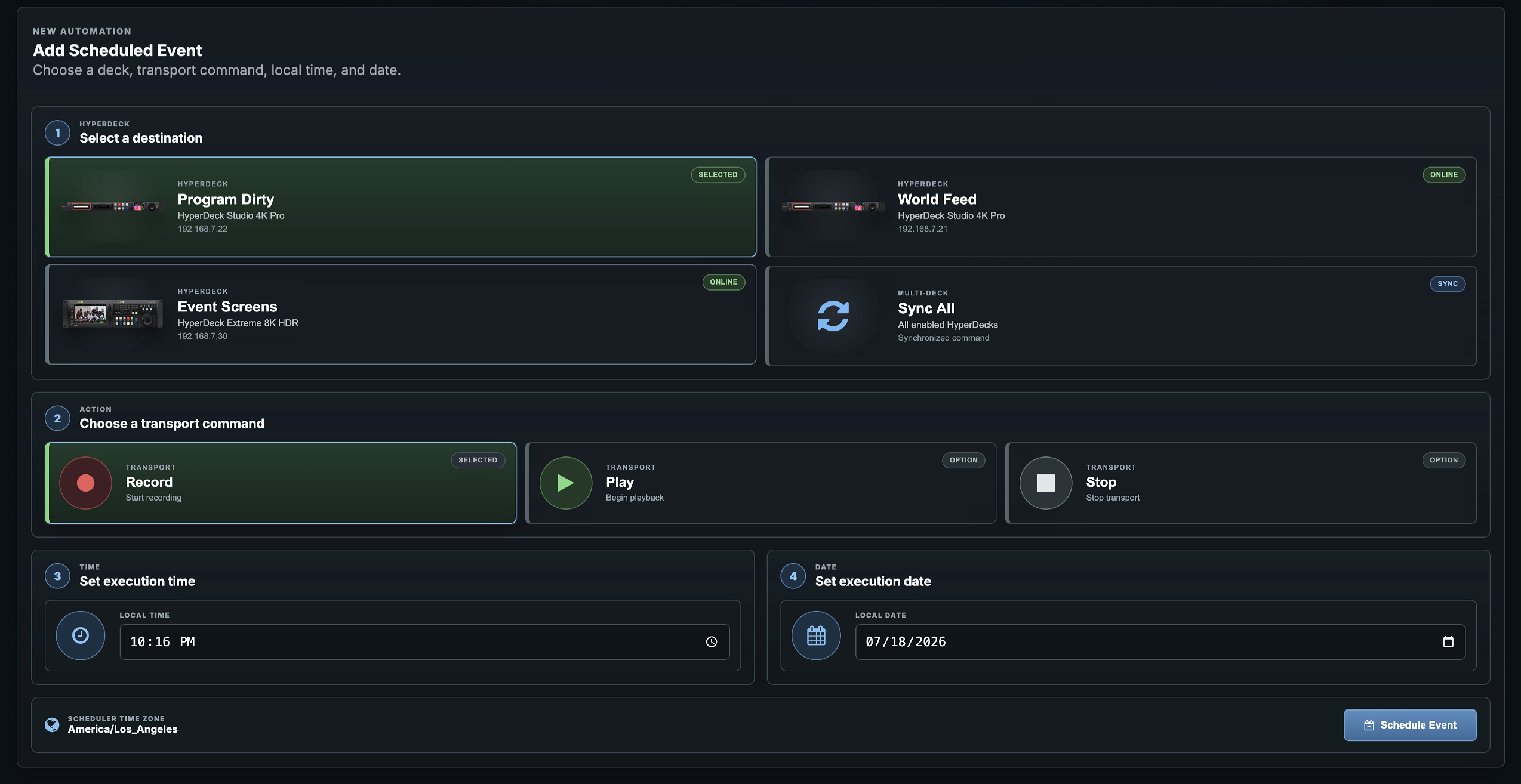

Scheduler & Automation
Schedule recordings, automate workflows, and never miss a moment.

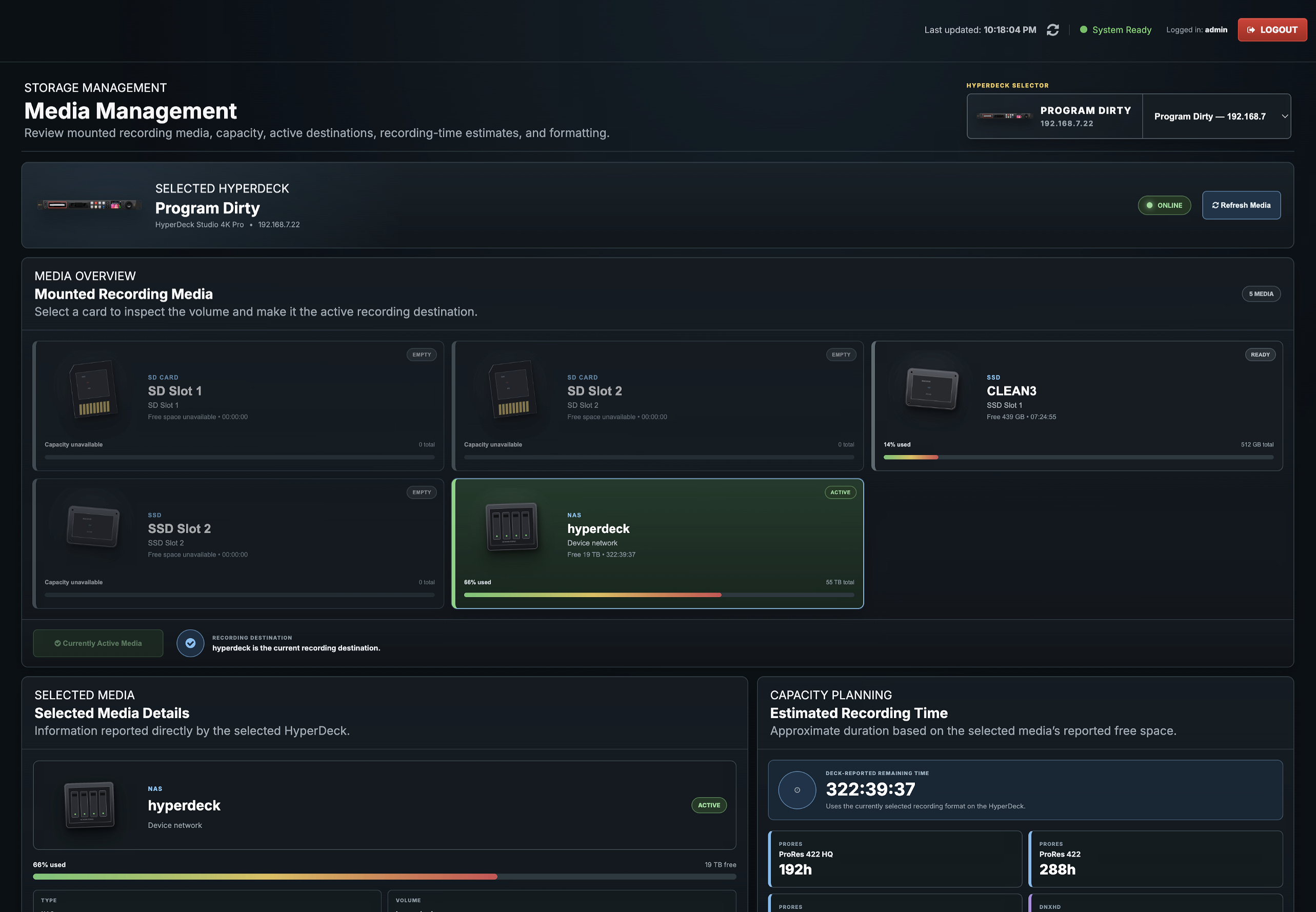

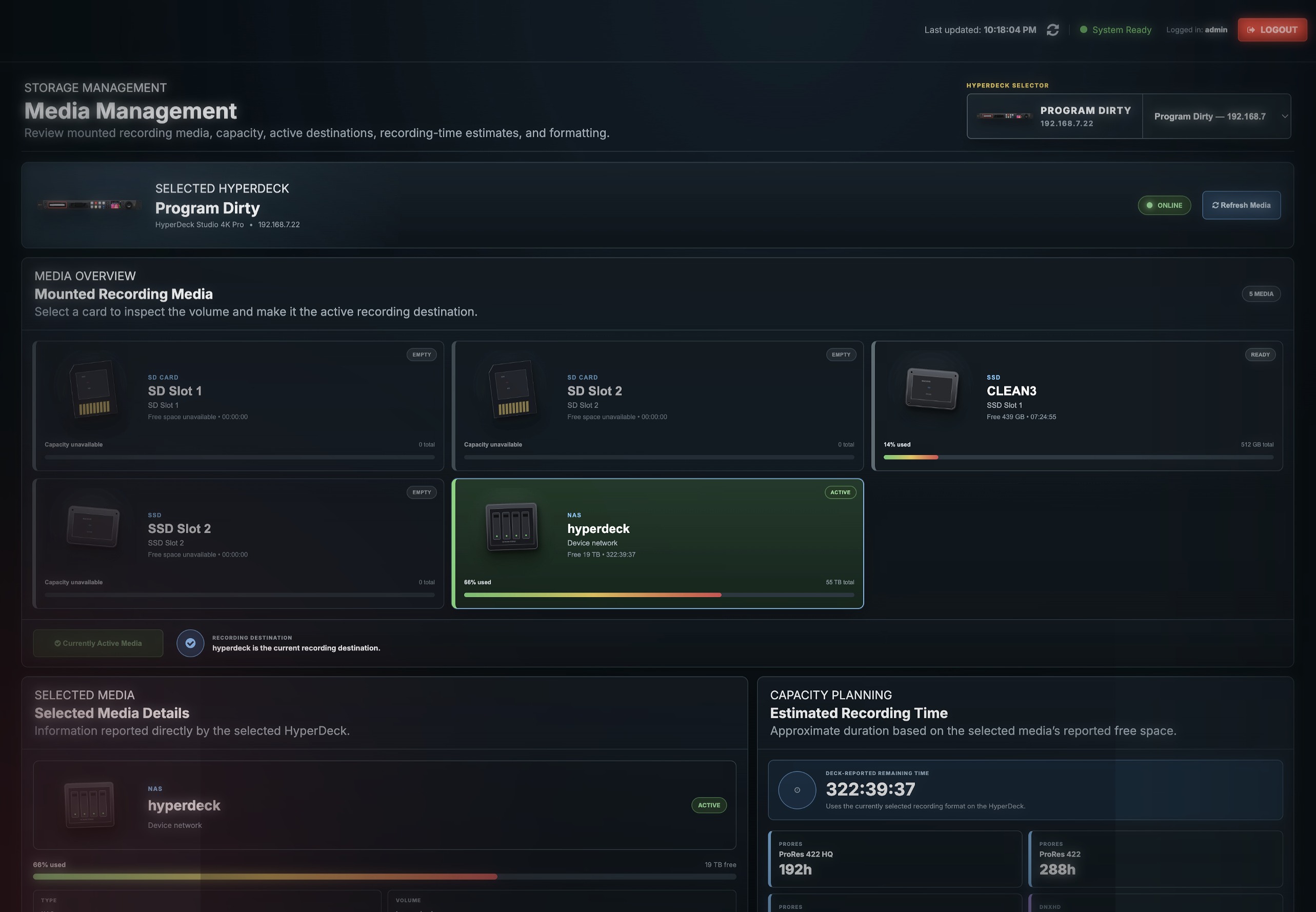

Media Management
Monitor media, check capacity, format, and manage with confidence.

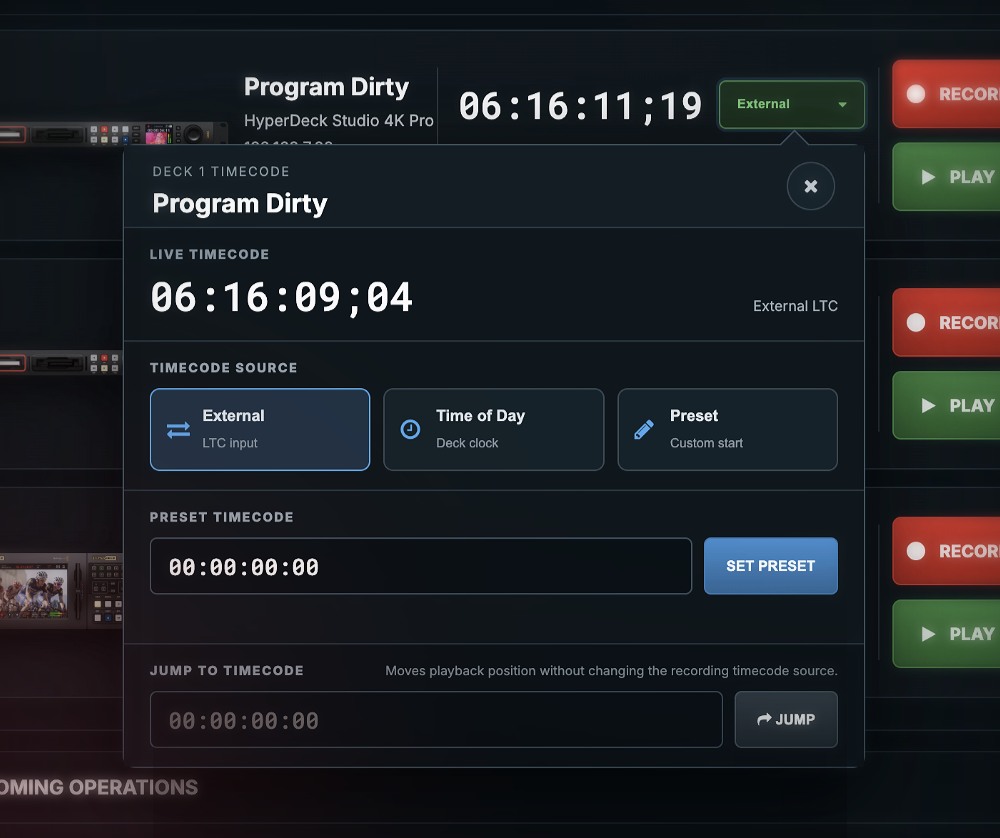

Timecode & Transport
Precision timecode control with jump, presets, loop, and external sync.

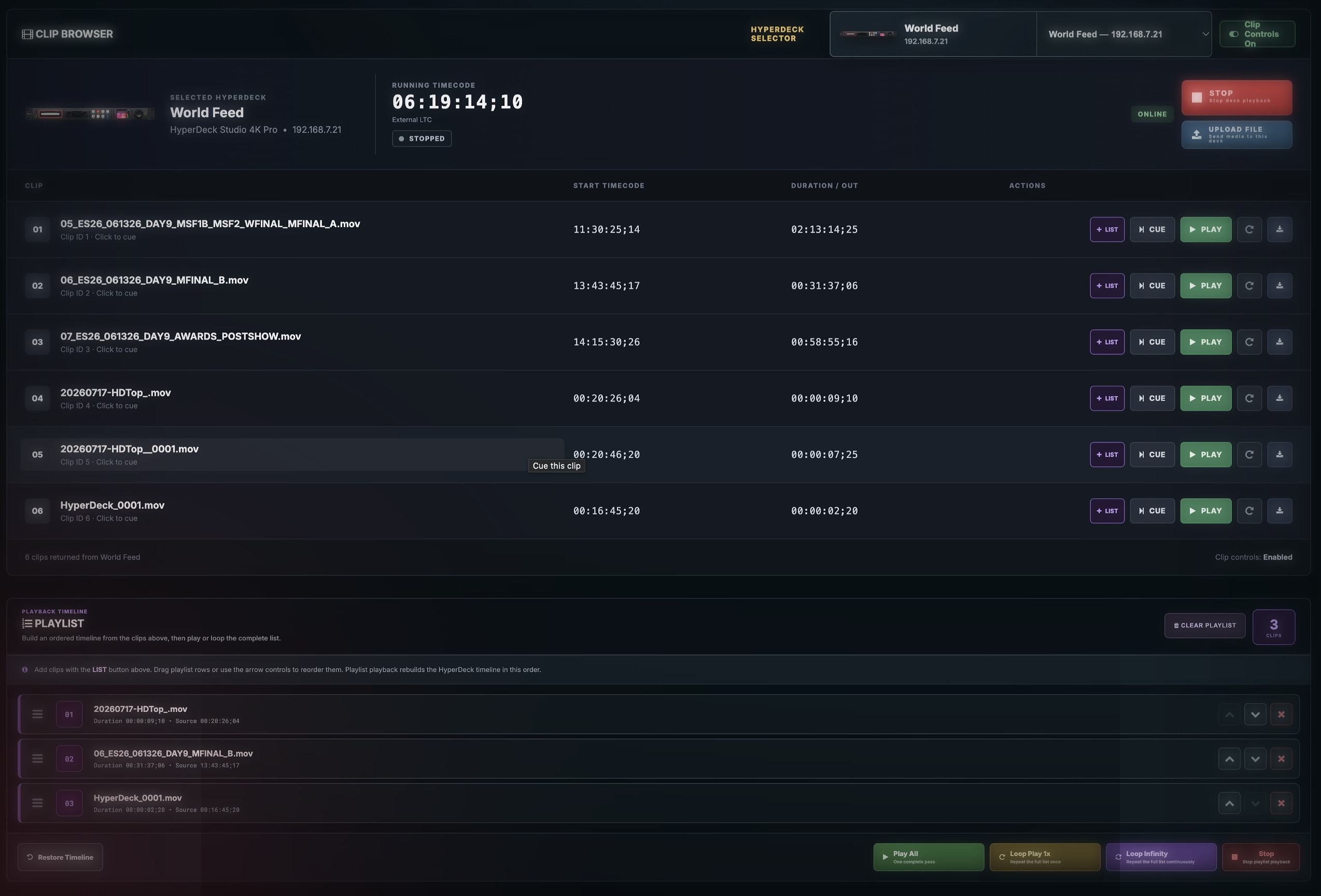

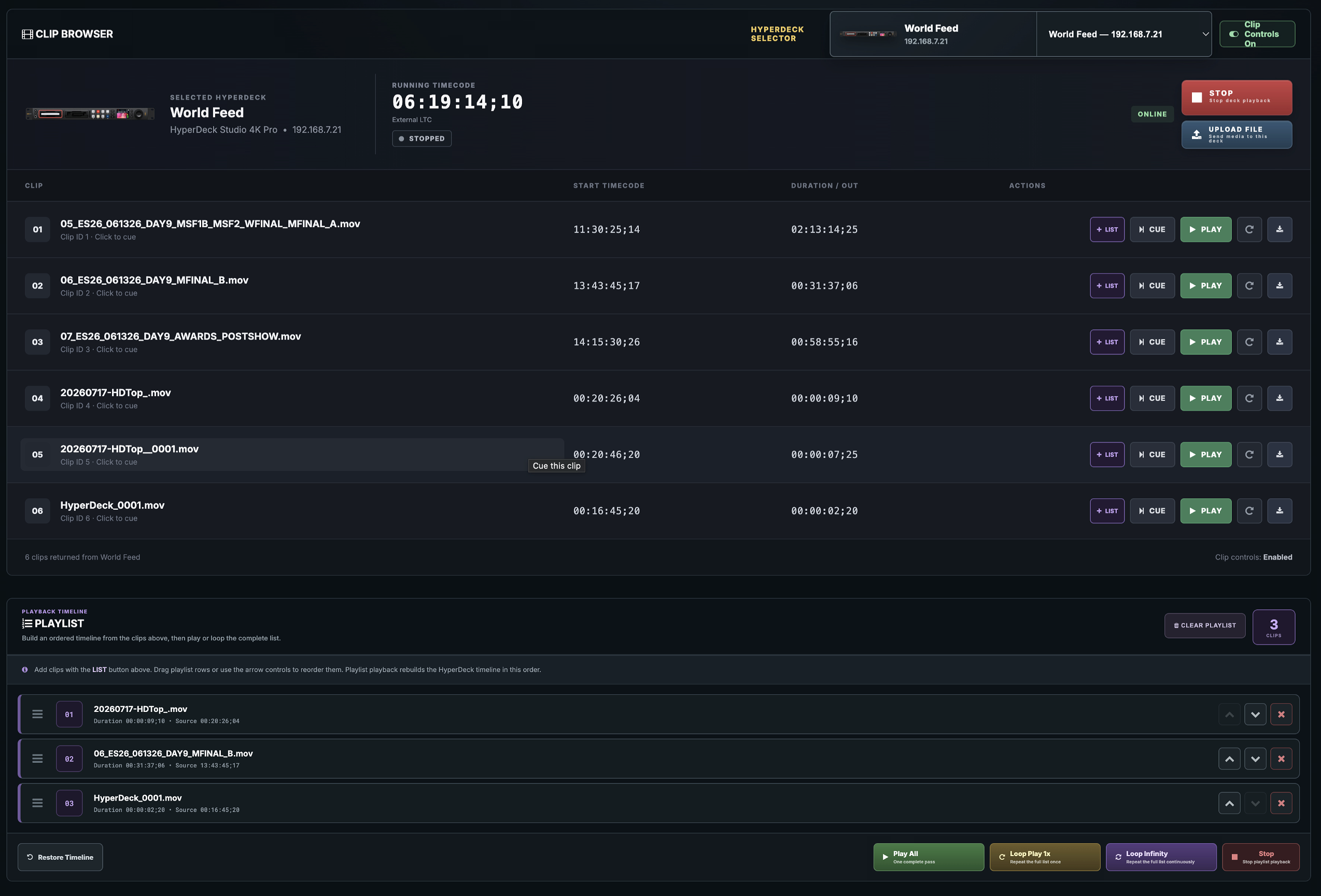

Clip Playback & Playlist
Browse, preview, and play clips or create custom playlists.

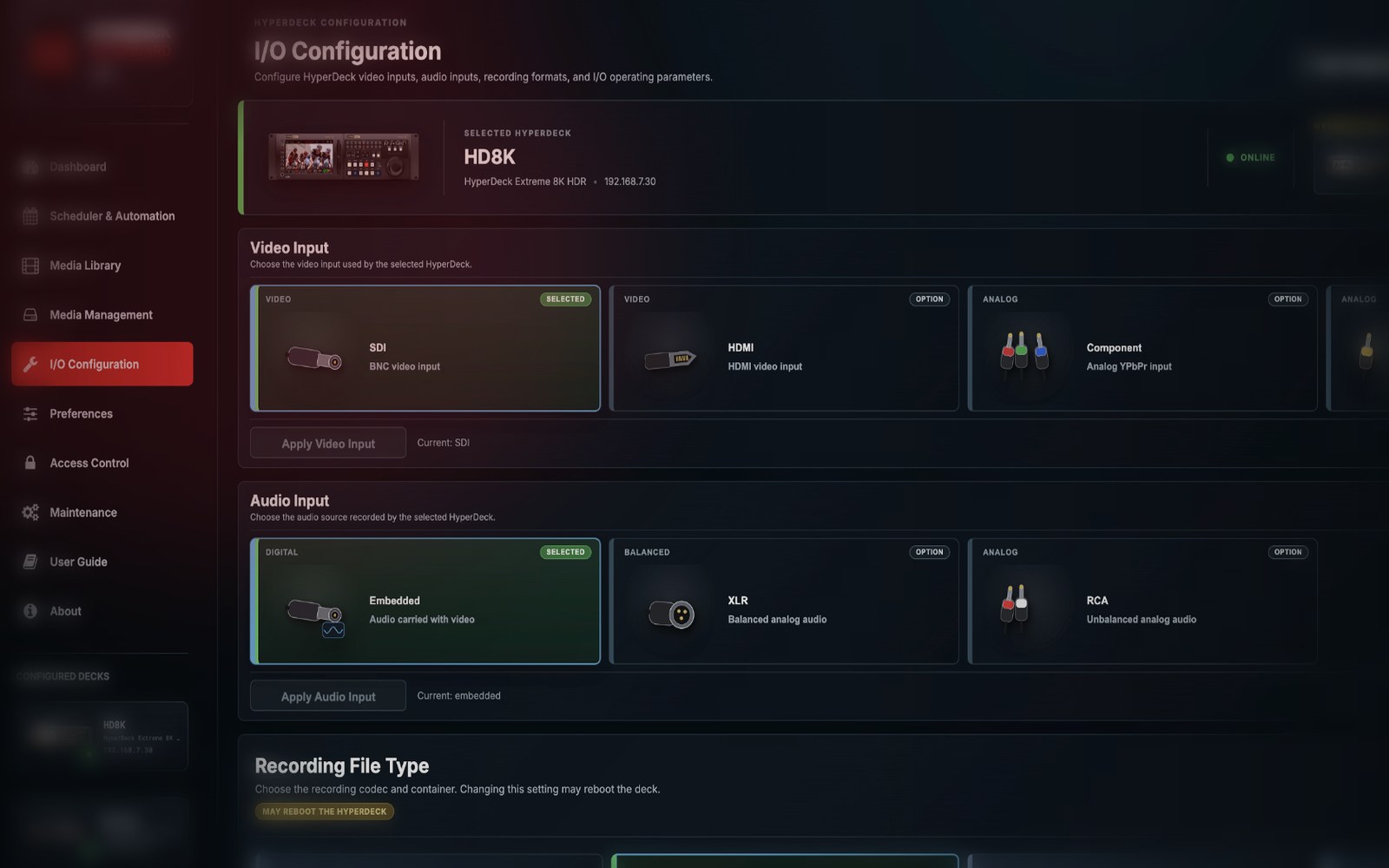

I/O Configuration
Configure video, audio, network, and recorder settings for every environment.

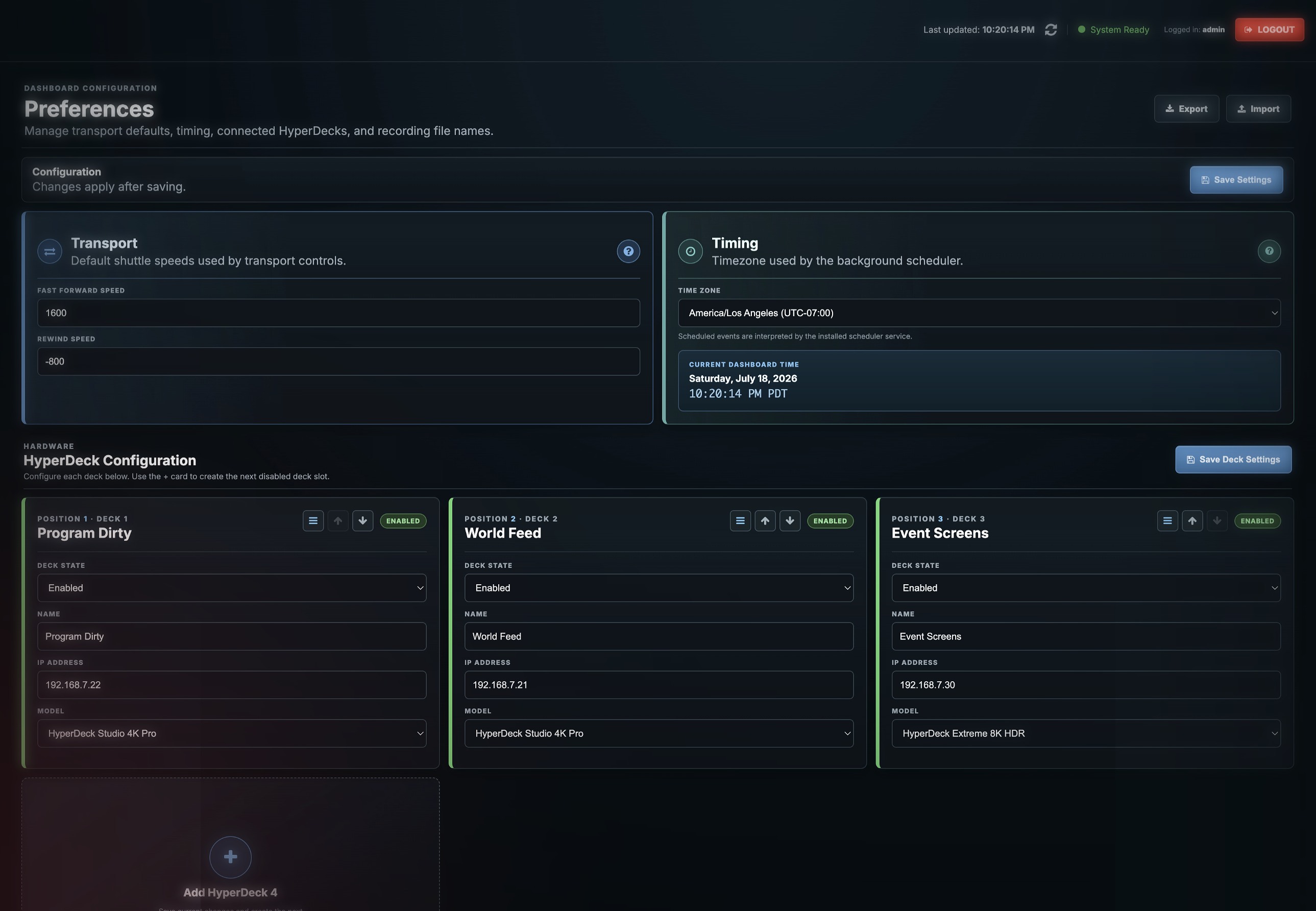

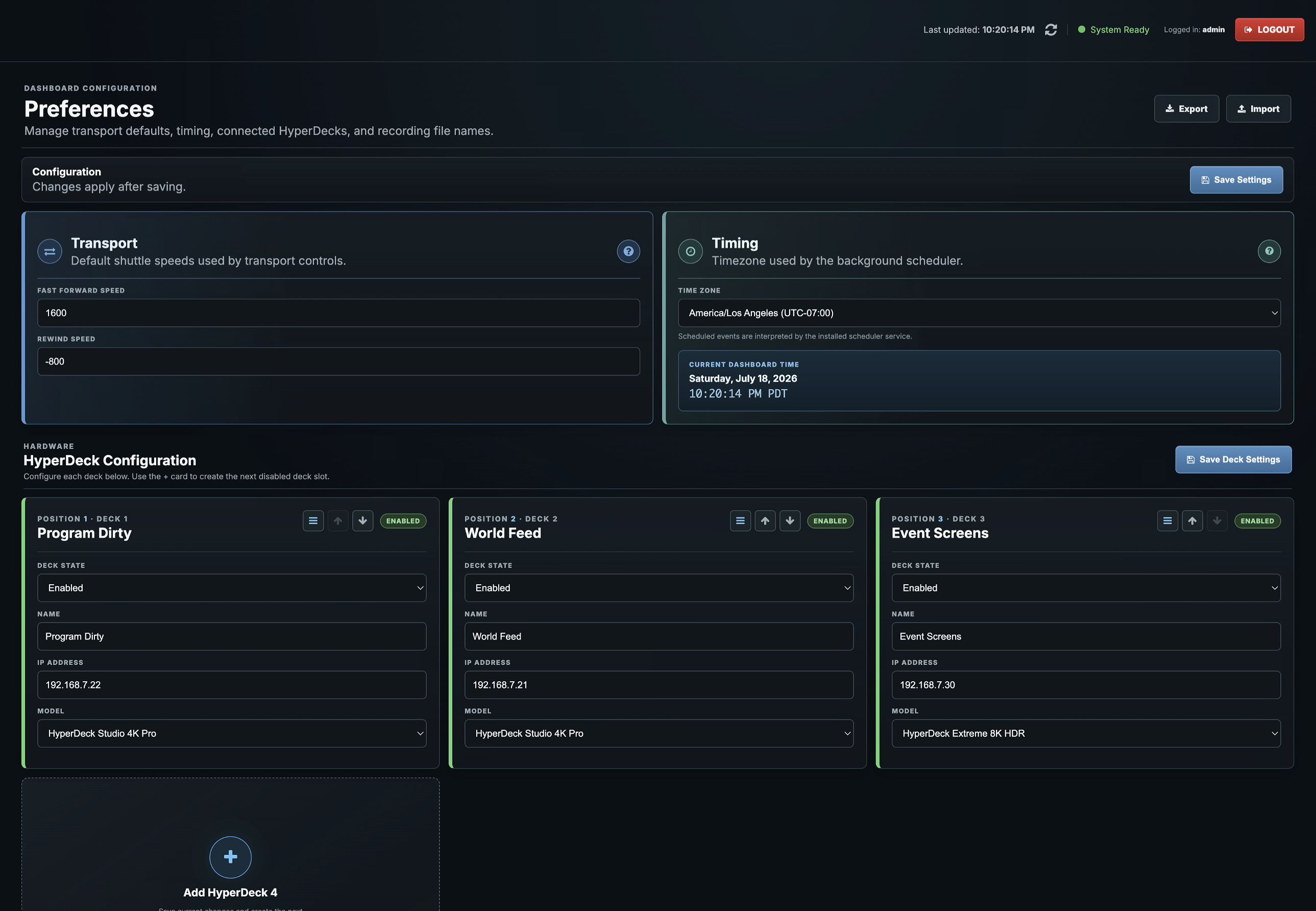

Preferences & System
Customize timing, deck configuration, interface preferences, and system behavior.

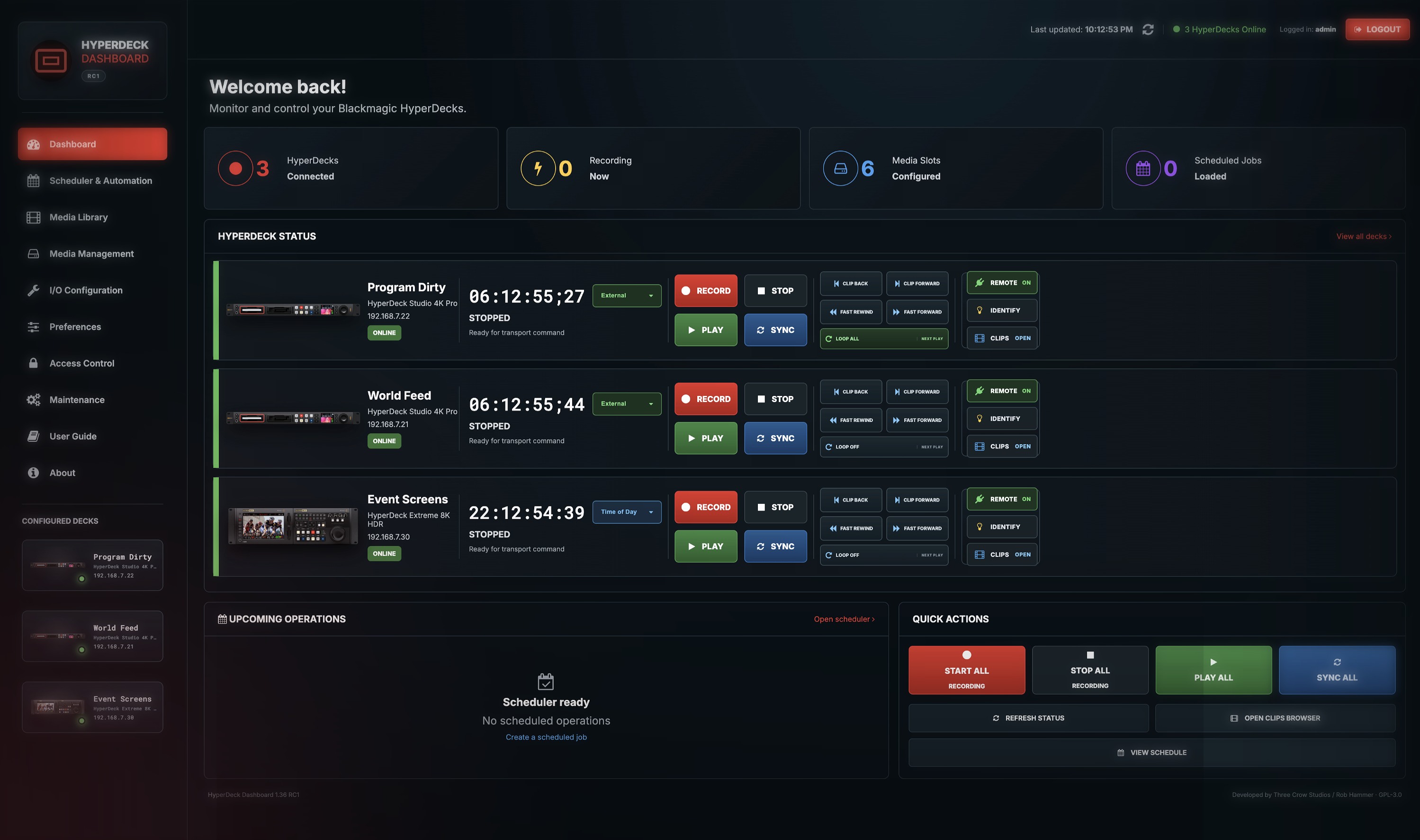

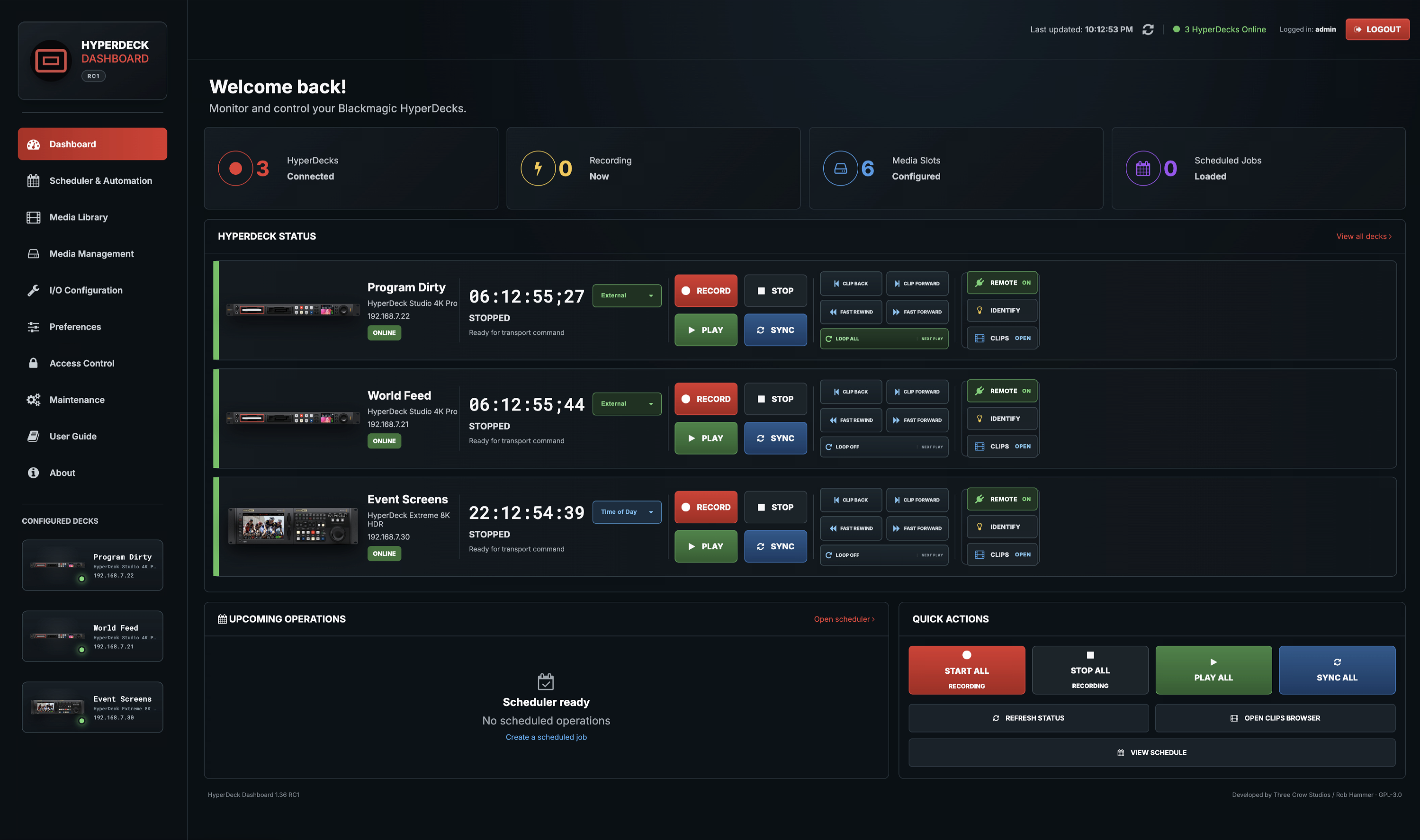

Multi-Deck Control
Control Multiple HyperDecks Simultaneously
Monitor status, control transport, and manage recordings across all your HyperDecks from one unified interface.

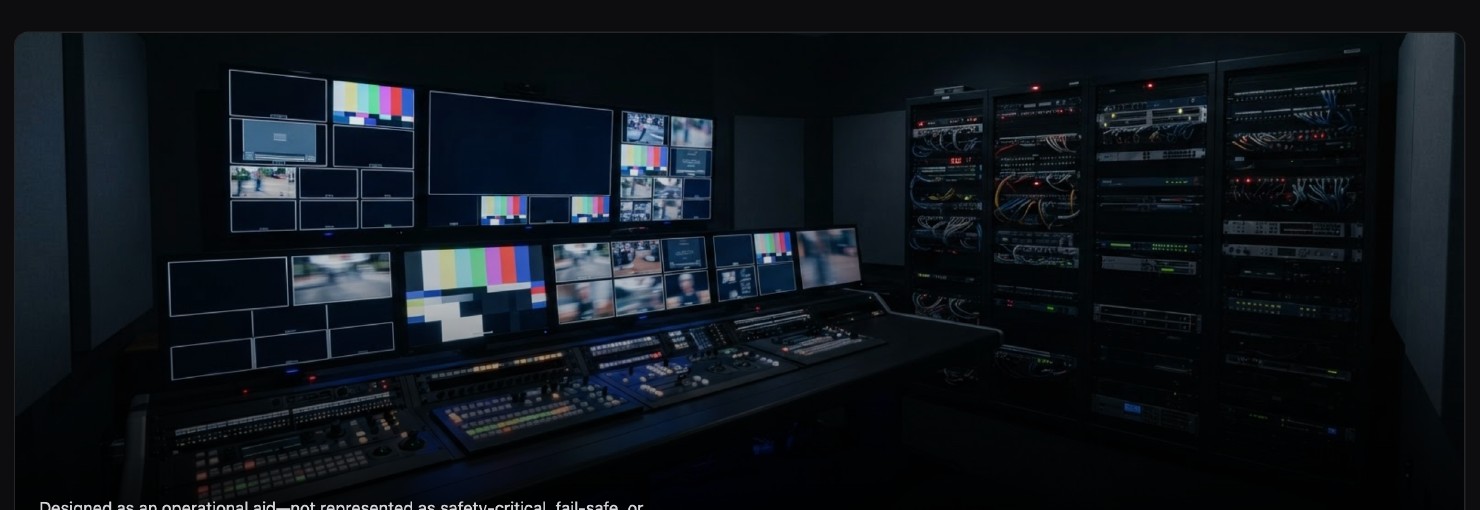

Production Environments
Built for Real Production Environments
For operators and engineers managing repeatable capture, playback, monitoring, and testing workflows across networked HyperDeck recorders.
Designed as an operational aid—not represented as safety-critical, fail-safe, or guaranteed for unattended mission-critical recording.
Broadcast Feed Capture
Record satellite, network, and broadcast feeds automatically.
Studio Production
Control multiple HyperDecks seamlessly in studio workflows.
Event Production
Record conferences, events, and live shows with scheduling tools.
Live Sports Recording
Capture every moment with reliable multi-deck recording.
Clip Playback
Browse and play clips from connected decks in the browser.
Redundant Recording
Record to multiple decks simultaneously for added reliability.
Transmission Recording
Capture transmissions continuously and consistently.
Engineering & Monitoring
Monitor deck status, timecode, and system health in real time.
Interface Tour
Explore the Dashboard
Select a panel to enlarge it.
Deployment Protocol
What You Need to Run HyperDeck Dashboard
◉
Option 1: MAMP on macOS
Recommended for a straightforward local installation.
Supported macOS computer and current MAMP
Apache enabled; PHP 8.4.1 recommended for the current release
Dashboard files in MAMP's document root
Ethernet connectivity to each HyperDeck
Current desktop browser and local firewall permissions
Host powered on while Dashboard or scheduler is used
/Applications/MAMP/htdocs/hyperdeck-dashboard/http://localhost:8888/hyperdeck-dashboard/The exact port can vary with MAMP configuration.▣
Option 2: MAMP on Windows
Supported Windows computer and current MAMP for Windows.
Apache enabled and compatible PHP version
PHP 8.4.1 recommended when available
Project placed in the document root shown by MAMP
Ethernet connectivity and firewall access
Modern browser
Host running during scheduled operations
Use the document root shown by the current MAMP installation rather than assuming a fixed Windows path.
▤
Option 3: Existing or Hosted Server
Apache or another compatible server with PHP 8.4.1 recommended.
Required PHP extensions enabled
Write permissions for settings, schedules, logs, or data
Outbound TCP access to HyperDeck control ports
Network routing to every HyperDeck
Appropriate authentication and network restrictions
Normal public shared hosting usually cannot reach recorders on a private LAN. Do not expose the Dashboard or recorders directly to the public internet.
Local Server Environment
Need a Local Web Server?
MAMP provides Apache, Nginx, PHP, and MySQL for macOS and Windows. Standard MAMP is sufficient for a typical local installation.
Current Chrome, Edge, Firefox, or Safari. Desktop browsers are recommended for full operational use.
HyperDeck requirements
One or more compatible recorders with Ethernet, valid IP configuration, remote Ethernet control, host network access, compatible firmware, and supported media.
Installation Overview
From Download to First Connection
Step 1
Install the Server Environment
Install MAMP on the host Mac or Windows computer, or prepare a compatible PHP web server.
Step 2
Download HyperDeck Dashboard
Download the current Release Candidate package from GitHub.
Extract the package and place the folder inside the configured web-server document root.
Step 4
Start the Web Server
Start Apache through MAMP and confirm the local Dashboard address opens in a browser.
Step 5
Add the HyperDecks
Enter each recorder's name, IP address, model, and media configuration. Confirm every device reports online.
Step 6
Test Before Production
Test record, stop, play, timecode, media selection, scheduled start and stop, and the scheduler service with noncritical media.
Quick Start
Installation Commands
Use the tabs for the local environment you are preparing. Copy buttons place the command in your clipboard.
Terminal
cd /Applications/MAMP/htdocs
git clone https://github.com/Three-Crow-Studios/hyperdeck-dashboard.git
open http://localhost:8888/hyperdeck-dashboard/
PowerShell
cd C:\MAMP\htdocs
git clone https://github.com/Three-Crow-Studios/hyperdeck-dashboard.git
start http://localhost:8888/hyperdeck-dashboard/
Shell
cd /path/to/web-root
git clone https://github.com/Three-Crow-Studios/hyperdeck-dashboard.git
# Configure PHP 8.4.x, write permissions, and private LAN routing.
The hosted server must have secure network access to the HyperDeck recorder LAN. Do not expose the Dashboard or recorders directly to the public internet.
This Release Candidate represents the feature-complete build intended to become the next stable HyperDeck Dashboard release. Test with available HyperDeck models and report reproducible issues through GitHub.
MAMP separately provides the Apache and PHP environment required for a straightforward local installation on macOS or Windows. MAMP PRO is not required.
The roadmap reflects the next areas of development and may evolve as hardware testing and community feedback continue.
01
Quad Record Support
Expanded support for HyperDeck Extreme 8K HDR quad-record workflows.
02
Shared Scheduling
Improved schedule visibility and coordination across multiple Dashboard hosts.
03
Additional Automation
Webhooks • Email Automation REST API • Event Triggers
04
Broader Model Validation
Continued compatibility testing across HyperDeck models, firmware, and media topologies.
05
Playlist Improvements
Expanded clip, playlist, and deck-level playback management.
06
Media Management
Ongoing refinement of slot detection, formatting, capacity planning, and active-media handling.
Support Development
Help Shape the Future of HyperDeck Dashboard
HyperDeck Dashboard is developed independently around real-world broadcast production needs. If it saves time, simplifies a workflow, or becomes part of your production environment, consider supporting continued development through GitHub Sponsors.
Broadcast Technology Executive · Live Sports Production Architect · Producer · Systems Designer
HyperDeck Dashboard was conceived around practical production needs, developed through hands-on testing with multiple HyperDeck models, and designed to make complex broadcast workflows more accessible, repeatable, and dependable.
No. It is a browser-based application that runs from a compatible PHP web server. MAMP is the recommended straightforward local server environment for macOS and Windows.
Does it work on both macOS and Windows?
Yes. The browser interface is cross-platform. The host computer must run MAMP or another compatible PHP-capable server.
Does the browser need to stay open?
The browser must be open for direct operator interaction. Scheduled events can execute without it after the background service is installed and verified. The host computer and server must remain running.
Is MAMP required?
MAMP is recommended, but another compatible PHP web server can be used when it meets the networking, file-permission, and PHP requirements.
Is MAMP PRO required?
No. Standard MAMP should be sufficient for a typical local installation.
Can I install it on public web hosting?
Only when that server has secure network access to the HyperDeck recorders. Normal shared hosting generally cannot reach devices on a private production network.
Can I control it from another computer?
Yes, when the browser device can reach the Dashboard host and the host is configured to accept the connection. Firewall and network settings may need adjustment.
Does it work with every HyperDeck model?
Compatibility and available features vary by model, firmware, media configuration, and Dashboard release. Consult the compatibility notes and test your hardware.
Is this an official Blackmagic Design application?
No. HyperDeck Dashboard is an independent project and is not affiliated with, sponsored by, approved by, or supported by Blackmagic Design.
Is the Release Candidate safe for production?
It should be treated as prerelease software and fully tested with the intended recorders, media, network, host, and scheduler workflow before production use.
Ready for Connection
Bring Every HyperDeck Into One Control Surface
Download HyperDeck Dashboard, connect your recorders, and help validate the next stable release.
